The Ultimate UML Diagrams Cheat Sheet
Welcome to your complete reference for Unified Modeling Language (UML) diagrams. This guide is designed to be a practical cheat sheet, giving you quick access to the notation for all 14 official UML diagram types. Whether you're a developer, architect, or analyst, this is your go-to resource for modeling system structure and behavior.
Your Quick-Reference UML Diagram Guide
Think of the Unified Modeling Language (UML) as the universal blueprint for software. Just like an architect wouldn't build a skyscraper without detailed drawings, software teams use UML to design, communicate, and document systems before diving into code. It gives everyone—from developers to stakeholders—a clear, shared picture of how everything fits together.
Having a handy UML diagrams cheat sheet like this one means you don't have to memorize every single symbol. Instead, you can focus on building great software.
The Two Pillars of UML
UML diagrams are split into two major categories that cover everything you need to model. Structural diagrams show you what the system is, while behavioral diagrams show you what the system does.
To help you get a quick overview, here’s a breakdown of the two categories and some of the key diagrams you'll find in each.
| Category | Purpose | Common Diagram Types |
|---|---|---|
| Structural | Shows the static components of a system and their relationships. Think of this as the system's anatomy. | Class, Component, Object, Package, Deployment |
| Behavioral | Models the dynamic behavior of a system, showing how it responds to events and interacts over time. | Use Case, Sequence, Activity, State Machine |
Understanding which category a diagram falls into is the first step in choosing the right tool for the job.
While there are 14 diagrams in total, you'll find that a few are used far more often than others. In fact, a study on UML diagram usage statistics found that some are considered essential by nearly every expert.
For instance, Class and Statechart diagrams see 100% usage among surveyed experts, making them fundamental. Right behind them are Sequence diagrams (95.5%) and Use Case diagrams (90.9%), which are also staples in most projects.
Structural UML Diagram Notations
Structural diagrams are all about the static architecture of your system. Think of them as the blueprints. They lay out the fixed parts—your classes, objects, components, and nodes—and show how everything is connected. Essentially, they define the framework before any of the dynamic behavior kicks in.
In this part of the UML diagrams cheat sheet, we'll cover the essential notations for these foundational diagrams. We're going to zero in on the symbols you'll see most often in Class, Component, and Deployment diagrams, as they're the bread and butter of mapping out a system's core structure.
Key Class Diagram Notations
Of all the structural diagrams, class diagrams are probably the most common. They are fundamental to object-oriented design, showing a system's classes, their attributes, their methods, and how objects relate to each other. Getting these notations right is a huge step toward better design. In fact, solid UML modeling is one of the best ways to improve code quality.
A basic class is drawn as a rectangle with three compartments:
- Top: This is where you put the class name (e.g.,
Customer). - Middle: This section lists the attributes, or fields (e.g.,
- customerID : int,+ customerName : String). - Bottom: Here, you list the operations, or methods, that the class can perform (e.g.,
+ placeOrder()).
You'll notice symbols next to each attribute and operation. These define the visibility:
+means Public: Anyone can access it.-means Private: Only accessible from within the class itself.#means Protected: Accessible within the class and any of its subclasses.
Key Insight: Don't just gloss over the visibility modifiers (
+,-,#). Using them correctly in your diagram is the first step toward good encapsulation in your actual code. A common and robust pattern is using private attributes (-) with public methods (+) to access and modify them (getters and setters).
Component and Deployment Diagram Symbols
If Class diagrams are about the logical design, then Component and Deployment diagrams are about the physical reality. They show how your software is bundled into components and where those components live on your hardware.
Here's a quick reference table for the most important symbols you'll need. This is a must-have for any good UML diagrams cheat sheet.
| Symbol Name | Description & Use Case | Common Diagram(s) |
|---|---|---|
| Component | A modular part of the system, shown as a rectangle with a small two-pronged icon. It groups a set of related classes. | Component Diagram |
| Interface | A circle (or "lollipop") connected to a component. It defines a contract of services the component provides. | Component Diagram |
| Artifact | A physical file, like a .jar, .dll, or an executable. It looks like a document icon with a folded corner. |
Component, Deployment |
| Node | A piece of physical hardware where software runs, like a server or a mobile device. This is drawn as a 3D cube. | Deployment Diagram |
| Association | A solid line that connects two nodes. This simply indicates a communication path exists between them. | Deployment Diagram |
With these notations, you can connect your abstract design to a concrete implementation. For instance, a Deployment diagram could clearly show that your WebApp.war (Artifact) runs on an Application Server (Node).
Behavioral UML Diagram Notations
While structural diagrams give us the static blueprint of a system, behavioral diagrams bring it to life. They show us how the system actually works—modeling the dynamic parts, the interactions between components, and how everything responds when things happen. Think of them as the story of your system in action. They are absolutely critical for figuring out how users will interact with a system and how its different parts talk to each other to get a job done.
This part of our UML diagrams cheat sheet will walk you through the essential notations for the most common behavioral diagrams. We'll be focusing on the symbols for Use Case, Activity, and Sequence diagrams, as these are the ones you'll see time and again. In fact, Use Case diagrams alone are reportedly used in over 90% of software projects.
Core Notations for Use Case Diagrams

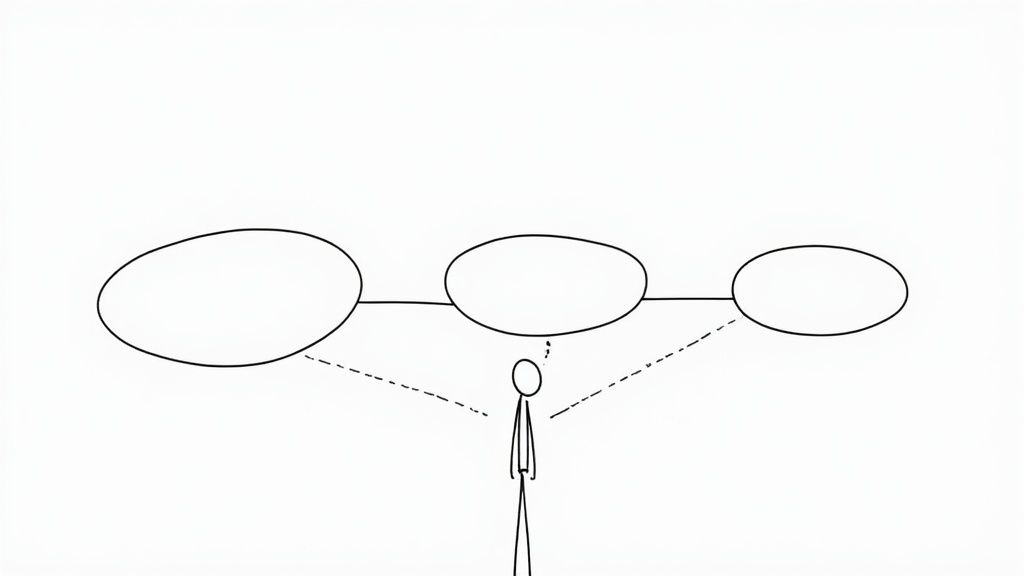

Use Case diagrams give you a bird's-eye view of what a system does, all from the perspective of the people using it. They're fantastic for nailing down the scope of a project and communicating requirements because they keep things simple. This simplicity is their strength, making them easy for everyone, from developers to business stakeholders, to understand.
Here are the fundamental pieces you'll work with:
- Actor: This is the classic stick figure. An Actor represents a user, another system, or really anything external that interacts with your system. They're the ones who kick off an action.
- Use Case: Shown as an oval, a Use Case describes a specific goal an Actor wants to achieve. It's usually a verb phrase like "Log In" or "Submit Report."
- System Boundary: This is just a large box drawn around all the Use Cases. It creates a clear visual line between what's inside your system and the external Actors interacting with it.
- Association: A simple solid line connecting an Actor to a Use Case. It signifies that the actor is involved in that specific interaction.
At their core, these diagrams answer one simple question: "What can someone do with this system?" They set the stage for all the more detailed behavioral models that follow.
Essential Notations for Activity and Sequence Diagrams
If a Use Case diagram shows what a system does, Activity and Sequence diagrams show how it gets done. They take you inside the machine, modeling the internal workflows and the back-and-forth communication between different objects.
Key Insight: When should you use which? Pick a Sequence Diagram when you need to show how specific objects interact over time to complete a single task. Go with an Activity Diagram to map out a whole business process or a complex workflow from start to finish, especially when you need to highlight decision points and parallel flows.
The table below is a quick reference guide, breaking down the must-know symbols for both of these powerful diagrams.
| Symbol Name | Description & Use Case | Common Diagram(s) |
|---|---|---|
| Start/Initial Node | A solid black circle. This marks the very beginning of the workflow. Every activity diagram needs one. | Activity |
| Action/Activity | A rectangle with rounded corners. This represents a single task or step performed within the process. | Activity |
| Decision Node | A diamond shape. It shows a point where the path splits based on a condition, working much like an if-else statement in code. | Activity |
| Lifeline | A dashed vertical line, usually with a rectangle at the top. It represents a single participant (an object or actor) throughout an interaction. | Sequence |
| Activation Box | A thin rectangle placed on a Lifeline. It illustrates the period when an object is busy performing an action. | Sequence |
| Synchronous Message | A solid line with a filled, solid arrowhead. It means the sender sends a message and then waits for a reply before doing anything else. | Sequence |
| Asynchronous Message | A solid line with an open arrowhead. Here, the sender fires off the message and immediately moves on without waiting for a response. | Sequence |
Mastering UML Relationships and Connectors
While the boxes and ovals for classes and activities are important, it's the lines connecting them that truly bring a UML diagram to life. These connectors, known as relationships, are the glue that shows how different parts of a system interact, depend on, or inherit from one another. Honestly, getting these lines wrong is a classic mistake that can lead to muddled models and a shaky software architecture.
This section of our UML diagrams cheat sheet is all about clearing up the confusion around these critical connectors. Once you get a handle on the specific rules for each relationship type, you'll be able to create diagrams that are not just visually accurate but also logically sound. This is a foundational skill that pays off later, especially when you’re learning how to write clean code that perfectly mirrors your system design.
A Quick Guide to Relationship Types
Every relationship type tells a very specific story. For instance, some lines show a simple connection, while others describe a strong "part-of" relationship where one object can't even exist without the other. Nailing these distinctions is what separates a beginner's diagram from a professional one.

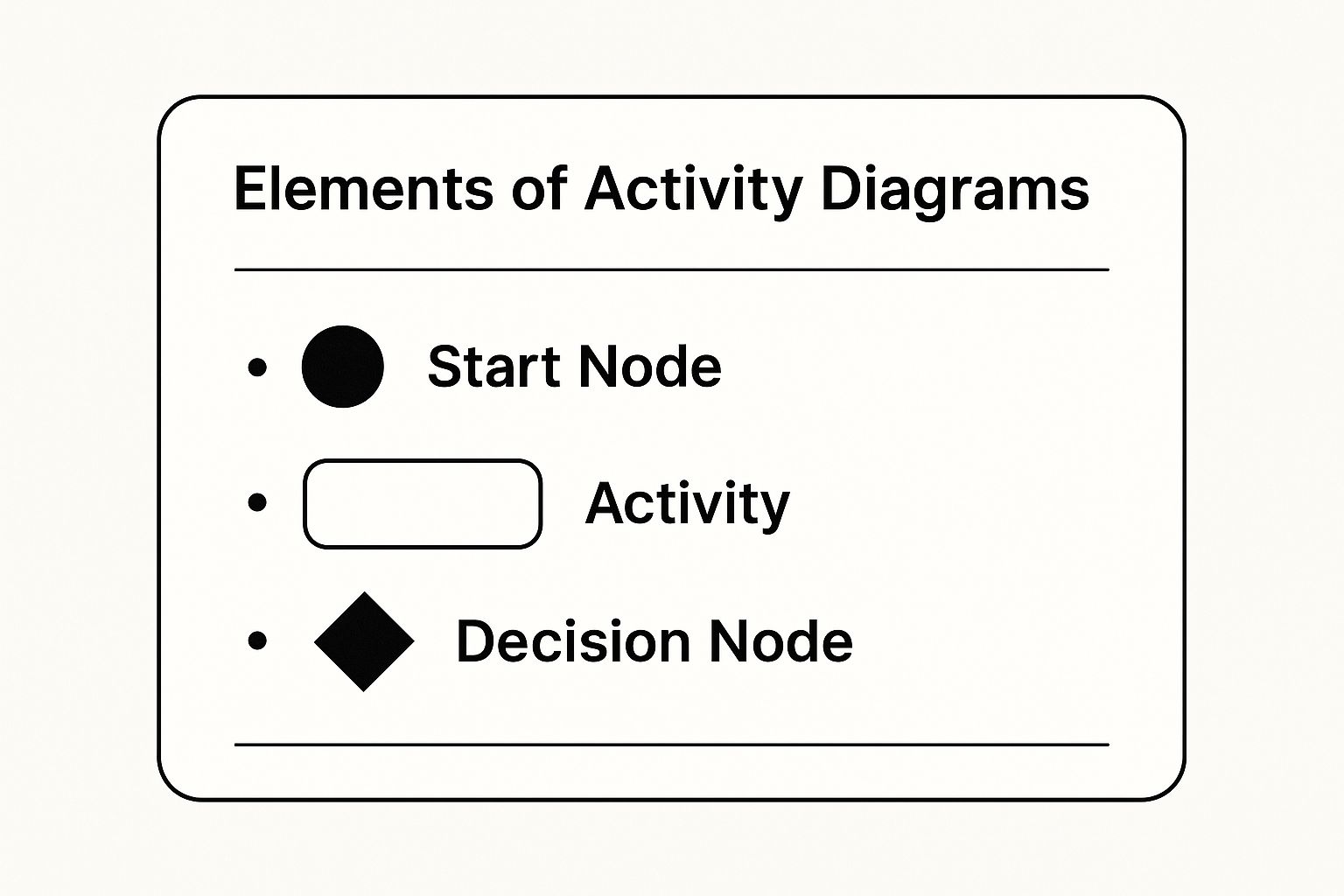

The image below highlights a few key elements from Activity diagrams, which heavily rely on control flow connectors to map out process steps.
As you can see, this visual breaks down three essential building blocks for any workflow: the Start Node where a process kicks off, an Activity that represents a single task, and a Decision Node for handling branching logic.
UML Relationship and Connector Reference
Choosing the right relationship is all about expressing your true intent. An Association is a generic link, but a Composition implies a much stronger, life-dependent bond between objects. Using the wrong one can completely alter how someone interprets your system's design.
To help you get it right every time, I've put together this quick-lookup table. It covers the most common UML relationships, their symbols, and what they really mean.
| Relationship Type | Notation Symbol | Description and Rules | Commonly Used In |
|---|---|---|---|
| Association | A solid line (—) |
This is your standard structural link between two classes. It often includes multiplicity (like 1-to-many). | Class, Object |
| Aggregation | A line with an unfilled diamond (—◇) |
Represents a "has-a" relationship where the child can exist independently of the parent. Think of a Team that has Players—the Players can exist without the Team. | Class |
| Composition | A line with a filled diamond (—◆) |
A strong "owns-a" relationship where the child's entire lifecycle depends on the parent. For example, a House owns Rooms; if you demolish the House, the Rooms are gone too. | Class |
| Dependency | A dashed line with an open arrow (- - ->) |
This shows a "uses-a" relationship. A change in one element (the supplier) might impact the other (the client). It's a weaker connection than an association. | Class, Component, Package |
| Generalization | A solid line with an unfilled arrowhead (—▷) |
This is the classic "is-a" relationship, representing inheritance. The child (subclass) inherits properties and behaviors from the parent (superclass). | Class, Use Case |
Having this reference handy will help ensure your diagrams are not only easy to read but also technically precise, reflecting the real-world logic you're trying to model.
Creating Clear and Effective UML Diagrams
Knowing the symbols from a UML diagrams cheat sheet is one thing, but actually creating diagrams that your team can use is a different skill entirely. The real goal is to build a model that's clear, consistent, and gets straight to the point. Honestly, a confusing diagram can cause more headaches than having no diagram at all.
Effective UML modeling is all about finding the right balance. It’s tempting to throw every last detail onto a single diagram, but that's a classic mistake. Instead, make sure each diagram has a single, well-defined purpose. A sequence diagram, for example, should show one specific interaction, not try to map out the entire system's behavior. This focus is what makes them readable.
Principles for Professional UML Diagrams
Consistency is also a huge factor. You need to establish and stick to a clear naming convention for classes, methods, and actors to avoid confusion. For instance, a method named ProcessData() is pretty vague. Something like CalculateSalesTax() immediately tells you what it actually does.
And don't forget about notes! UML has a "note" element for a reason—it looks like a rectangle with a dog-eared corner. Use it to explain tricky logic, justify a design decision, or add context that the diagram itself can't communicate. They're your secret weapon for clarity.
Best Practice: Always have a colleague review your diagrams. A fresh pair of eyes will almost always catch something you missed, whether it's an inconsistency or just a confusing part. This kind of peer review is a simple form of quality assurance that pays off big time.
When done right, a great UML diagram builds a shared understanding and helps speed up development. If you're interested in making sure your projects are built to a high standard, you might find our website quality assurance checklist helpful; many of the same ideas about clarity and review apply. Follow these simple guidelines, and you'll be creating diagrams that are truly useful tools for your team.
Common Questions About UML Diagrams
Even with a solid UML diagrams cheat sheet handy, some questions seem to pop up again and again. Let's tackle a few of the most common sticking points to clear up any confusion and help you build better, more accurate models.
What Is the Main Difference Between Aggregation and Composition?
This is easily one of the most common trip-ups for people learning UML. Both aggregation and composition describe a "whole-part" relationship, but the real difference comes down to one thing: how tightly the lifecycles of the objects are connected.
Composition (Strong Relationship): Think of this as an ownership relationship. The "part" object absolutely cannot exist without the "whole." A perfect example is a
Houseand itsRooms. If you demolish theHouse, theRoomsgo with it. You represent this with a filled diamond.Aggregation (Weak Relationship): Here, the "part" object has its own independent life. A
Teamand itsPlayersis a classic example. If theTeamdissolves, thePlayersdon't disappear—they can go on to join other teams. This is shown with an unfilled, open diamond.
Getting this right is all about correctly modeling dependencies. Composition means ownership, while aggregation suggests a much looser "has-a" connection.
When Should I Use a Sequence Diagram Instead of an Activity Diagram?
It's easy to see why these two get mixed up. Both are behavioral diagrams that map out processes, but they focus on completely different things. The one you choose really depends on what story you're trying to tell.
A Sequence Diagram is your go-to when you need to show how a specific set of objects talk to each other over time. It’s all about the messages being passed back and forth in a strict, time-ordered sequence. Use it to trace a single scenario, like a user login or an item being added to a shopping cart.
An Activity Diagram, however, gives you a bird's-eye view of a workflow. It’s less concerned with which object does the work and more focused on the flow of control itself—including forks, joins, and decision points. Use this when you need to map out business logic or a high-level system process.
Key Takeaway: Use Sequence Diagrams to detail object interactions in a timeline. Use Activity Diagrams to map out the overall flow of a process.
Are UML Diagrams Still Relevant in Agile Development?
Absolutely. There’s a persistent myth that UML is a heavyweight, waterfall-only tool, but that couldn’t be further from the truth. In agile environments, UML diagrams are incredibly useful, they just get used differently.
Instead of creating massive, formal documents, agile teams use UML for quick, targeted communication. A developer might sketch a quick Sequence Diagram on a whiteboard to work through an API call with a teammate. A simple Class Diagram can help everyone agree on a data model before a sprint starts.
The goal isn't exhaustive documentation; it's about achieving communication and shared understanding quickly and effectively. They are tools for conversation, not just for posterity.
